E1840P Camshaft Springs Pushrods Kit with Timing Cover for GM LS

This aftermarket E1840P Camshaft Springs Pushrods Kit is designed forselected GM LS-Series performance builds using a compatible 3-bolt camshaft configuration.

The package includes one E1840P Sloppy Stage 2 hydraulic rollercamshaft, 16 matching valve springs, 16 pushrods, one front enginetiming cover, one gasket set and one installation bolt.The camshaft features .585-inch intake and exhaust valve lift,228°/230° duration at .050-inch lift, a 112° lobe separation angle and a 2200–5400 RPM operating range. This package is intended for builds where the camshaft, valve springs, pushrods and front timing-cover components are serviced during the same engine project.

Features

• Includes one E1840P hydraulic roller camshaft for compatible GM LS performance engine builds.
• Features .585 in intake and exhaust valve lift, 228°/230° duration at .050 in, a 112° lobe separation angle and a 108° intake centerline.
• Includes 16 matching single-beehive valve springs for the listed Stage 2 camshaft package.
• Includes 16 one-piece pushrods with a listed 7.400-inch length, 5/16-inch diameter and .080-inch wall thickness.
• Includes one front timing cover for related front-engine service performed during the camshaft installation.
• Includes one gasket set and one installation bolt for the confirmed package configuration.
• Designed for projects where the camshaft, valve springs, pushrods and front timing-cover components are addressed during the same engine build.

E-1840-P Engine Camshaft for GM Chevy
    Engine Type LS-Series
    Camshaft Type Hydraulic Roller
    Intake Duration @ .050" 228°
    Exhaust Duration @ .050" 230°
    Intake Valve Lift .585"
    Exhaust Valve Lift .585"
    Lobe Separation 112°
    Intake Centerline 108°
    Advertised Intake Duration 283°
    Advertised Exhaust Duration 286°

16pcs PAC-1218 Drop-In Valve Springs
    Outside Diameter of Outer Spring (in) 1.290 in.
    Coil Bind Height (in) 1.140 in.
    Damper Spring Included No
    Install Load 130lbs
    Install Height 1.800"
    Open Height 1.175"
    Open Load 318 lbs
    Spring Rate (lbs/in) 313 lbs./in.
    Inside Diameter of Outer Spring (in) 0.885 in.

Pushrods
   7.400" Chromoly One Piece Pushrods, 5/16" diameter, and .080" wal

TCS45993 Chevy LS Timing Cover Gaskets
   Chevy LS Engine Timing Cover Gaskets
   Unsurpassed quality you can trust
   Includes gaskets and seals for timing chain and water pump replacement job

Chevrolet Performance Parts 12557840 Harmonic Balancer Bolt
   High quality steel construction
   Hex head style
   16mm x 2.0 thread size
   4.055" underhead length

16pcs 12482063 Viton Valve Seals
   Valve TypeIntake and Exhaust
   EnginesLS1 LS2 LS4 LS6 LQ4 LQ9 LM7 L59 LR4 LM4 L33 L76
   Fitment TypeDirect Replacement
Summit Racing LS1/LS6 Timing Cover
Front Crankshaft Seal
OEM GM Timing Cover Gasket
(Qty 8) OEM GM Timing Cover Bolts

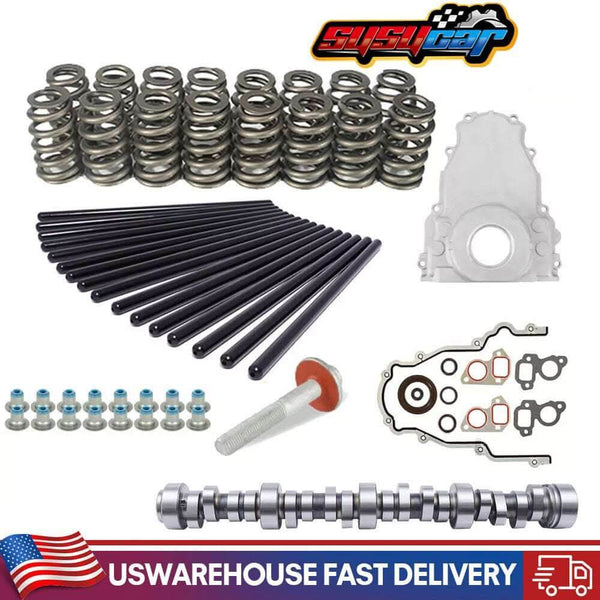

Items Included
1x E1840P Camshaft
16x Matching Springs Set
1 SET OF GASKETS
1x BOLT
16X PUSHRODS
1timing cover

Item Includes

All components shown in the product images are included

• 1997-2007 GM Chevy LS L92 L99 5.3L 5.7L 6.0L 6.2L
• 1997-2007 V8 LSx Sloppy Stage 2

OEM Numbers

These OEM reference numbers are used for identification and fitment purposes.

Not sure if this fits❓
Send us your Year, Make, Model and Engine size before ordering.

⚠️IMPORTANT
Please double-check your vehicle’s year, engine type, and part number before purchasing.
If you're unsure, feel free to contact us for assistance.

• Part Type Camshaft Valve Springs Pushrods Kit
• Product Type Aftermarket Performance Kit
• Fitment Type Performance Upgrade
• Product System Engine
• Product Category Camshaft Kits
• Condition New
• Warranty 2 Year
• Installation Position Internal Engine / Valve Train / Front Timing Cover
• Camshaft Reference E1840P / E-1840-P
• Camshaft Profile Sloppy Stage 2
• Camshaft Type Hydraulic Roller
• Intake Valve Lift .585 in
• Exhaust Valve Lift .585 in
• Advertised Intake Duration 283°
• Advertised Exhaust Duration 286°
• Intake Duration @ .050 in 228°
• Exhaust Duration @ .050 in 230°
• Lobe Separation Angle 112°
• Intake Centerline 108°
• Cam Gear Attachment 3-Bolt
• Valve Spring Quantity 16
• Valve Spring Style Single Beehive
• Valve Spring Reference PAC-1218-Reference
• Maximum Listed Valve Lift .600 in
• Outer Diameter 1.290 in
• Inner Diameter .885 in
• Installed Height 1.800 in
• Installed Load 130 lb
• Open Height 1.175 in
• Open Load 318 lb
• Spring Rate 313 lb/in
• Coil Bind Height 1.140 in
• Pushrod Quantity 16
• Pushrod Length 7.400 in
• Pushrod Diameter 5/16 in
• Pushrod Wall Thickness .080 in
• Pushrod Construction One-Piece
• Pushrod Material Chromoly Steel
