E1840P Camshaft Lifters Oil Pump Timing Chain Kit with 7.400 Pushrods
Direct Replacement
OEM-Quality Part
Fitment Support
Warranty Protected
Estimated Delivery: - .
E1840P Camshaft Lifters Oil Pump Timing Chain Kit with 7.400 Pushrods
Shipping
All orders ship directly from our U.S. warehouses for faster delivery.
✔ Orders processed within 1–2 business days
✔ Delivery typically takes 3–5 business days
✔ Free Shipping on orders over $99 within the contiguous U.S.
✔ Shipped via UPS, FedEx, USPS, or DHL
⚠️Note: Alaska, Hawaii, PO Boxes, and APO/FPO addresses are currently not supported.
Packaging
Every order is carefully packed with protective materials to help prevent damage during transit.
Returns
Shop with confidence.
✔ 90-Day Return Policy
✔ Unused items accepted in original condition
✔ Free return shipping for defective or incorrect items
✔ Fast refunds after inspection
Warranty
Selected products include up to a 3-Year Limited Warranty against manufacturing defects.
Warranty coverage varies by product. Please refer to the product description for details.
Product Overview
This aftermarket E1840P Camshaft Lifters Oil Pump Timing Chain Kit isdesigned for compatible GM LS-Series engine builds using a 3-bolt,non-AFM/DOD valve-train configuration and an M295-compatible oil-pump application.

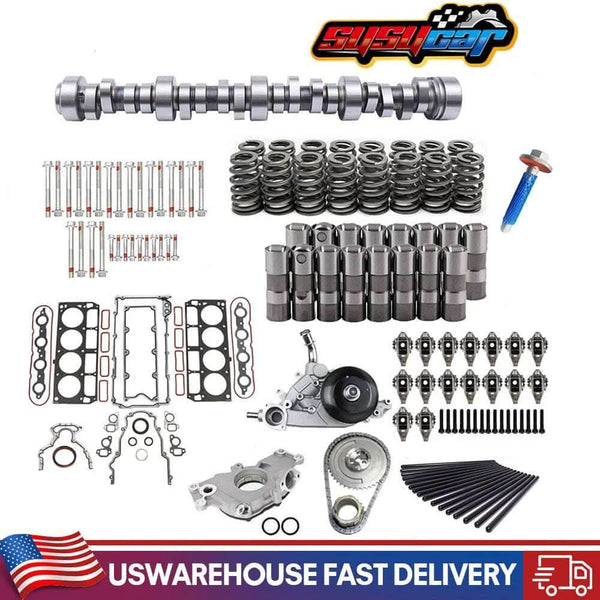

The package includes one E1840P Sloppy Stage 2 hydraulic roller camshaft,16 hydraulic roller lifters, 16 nominal 7.400-inch pushrods, one M295-reference oil pump, timing-chain components, lifter guides, cylinder-head and intake-gasket components, and related installation bolts.
The camshaft features .585-inch intake and exhaust lift, 228°/230°duration at .050-inch lift, a 112° lobe separation angle and a 2200–5400 RPM operating range.
Product Features
- Includes one E1840P hydraulic roller camshaft for compatible GM LS performance engine builds.
- Features .585" intake and exhaust lift, 228°/230° duration at .050" and a 2200–5400 RPM range. This profile is intended for modified engine applications rather than towing or universal stock replacement.
- Includes a complete 16-piece hydraulic roller lifter set for coordinated valve-train service.
- Includes 16 PR614S-reference steel pushrods. Elgin’s catalog lists an actual length of 7.393 inches, commonly sold as nominal 7.400-inch pushrods.
- Includes one M295-reference oil pump for compatible GM LS lubrication-system service. Exact engine RPO and pump application must be verified before installation.
- Includes timing-chain components for camshaft-drive service. The exact chain, sprocket, guide and tensioner contents should follow the warehouse packing list.
- Includes lifter-guide components for positioning the hydraulic roller lifters. Part number 12595365 identifies a GM LS valve-lifter guide application.
- Includes gasket components associated with references 12589226 and MS98016T. The former is a GM cylinder-head gasket reference, while MS98016T identifies an LS truck intake-manifold gasket set.
Specification
Camshaft Compatibility
- for Chevy LS-Series Engine 1997-Up
- Not for use with AFM/DOD
- Camshaft RPM Range 2200 to 5400 RPM
- Camshaft Intake Valve Lift .585"
- Camshaft Exhaust Valve Lift .585"
- Camshaft Advertised Intake Duration 283°
- Camshaft Advertised Exhaust Duration 286°
- Camshaft Intake Duration at .050" 228°
- Camshaft Exhaust Duration at .050" 230°
- Camshaft Lobe Separation 112°
- Camshaft Intake Centerline 108°
- Camshaft Cam Gear Attachment 3-Bolt
Number of Springs Per Valve Single
- Outside Diameter of Outer Spring (in) 1.290 in.
- Spring Coil Bind Height (in) 1.140 in.
- Damper Spring Included No
- Spring Install Load 130lbs
- Spring Install Height 1.800"
- Spring Open Height 1.175"
- Spring Open Load 318 lbs
- Spring Rate (lbs/in) 313 lbs./in.
- Inside Diameter of Outer Spring (in) 0.885 in.
- Valve Spring Style Beehive
Set of 16 Elgin Roller Lifters for 1997-2015 Chevy/GM LS Series Factory Roller applications without Active Fuel Management.

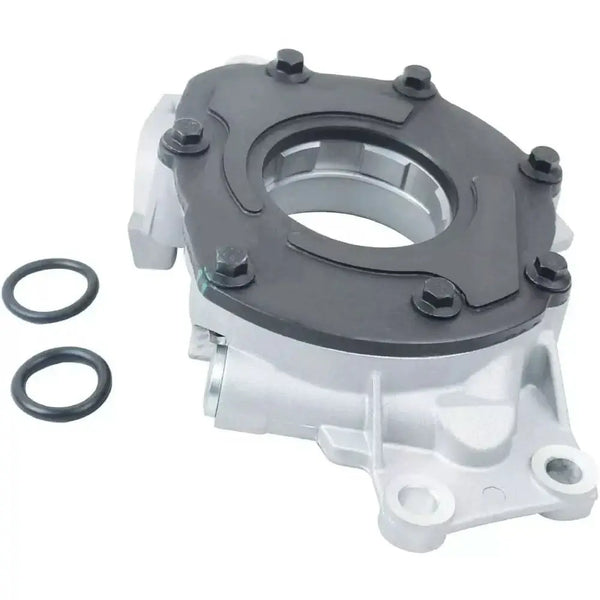

M295(12586665) Oil Pump
Pushrod Details
- Overall Length of 7.400"
- Overall Diameter of 5/16"
- Wall Thickness .080"
- Material 4130 Chrome Moly
LS1 Rocker
Specification
- Condition 100% Brand New
- Model Number I75656
- Product Name Rocker Arms W/Trunion Kit Installed
- Material Steel
- Color Silver
- Type Rocker Arm
- Rocker Arm Size 71mm/2.8" x 41mm/1.61" (LxW)
- Bolt Size 52.6mm/2.07" x 12.7mm/0.5" (LxW)
Item Includes
All components shown in the product images are included
Fitment & Inof
OEM Numbers
These OEM reference numbers are used for identification and fitment purposes.
Not sure if this fits❓
Send us your Year, Make, Model and Engine size before ordering.
⚠️IMPORTANT
Please double-check your vehicle’s year, engine type, and part number before purchasing.
If you're unsure, feel free to contact us for assistance.
