E1840P Camshaft Lifters Pushrods Kit with Valve Springs

This aftermarket E1840P Camshaft Lifters Pushrods Kit is designed forcompatible GM LS-Series engine builds using a 3-bolt, non-AFM/DOD valve-train configuration.

The package includes one E1840P Sloppy Stage 2 hydraulic roller camshaft,16 hydraulic roller lifters, 16 single beehive valve springs and 16 7.400-inch chromoly pushrods for performance projects where the related valve-train components are upgraded during the same engine teardown.

The camshaft features .585-inch intake and exhaust lift, 228°/230°duration at .050-inch lift, a 112° lobe separation angle and a 108° intake centerline.

Product Features

• Includes one E1840P hydraulic roller camshaft for compatible GM LS performance engine builds.
• Features .585" intake and exhaust valve lift, 228°/230° duration at .050", a 112° lobe separation angle and a 108° intake centerline.
• Includes a complete 16-piece hydraulic roller lifter set for compatible non-AFM/DOD valve-train applications.
• Includes 16 single beehive valve springs with a listed 1.800-inch installed height and 130-pound installed load.
• Includes 16 pushrods with a listed 5/16-inch diameter, 7.400-inch length and .080" wall thickness.
• Designed for compatible GM LS engine builds using a 3-bolt cam sprocket without factory AFM/DOD operation.

Item Includes

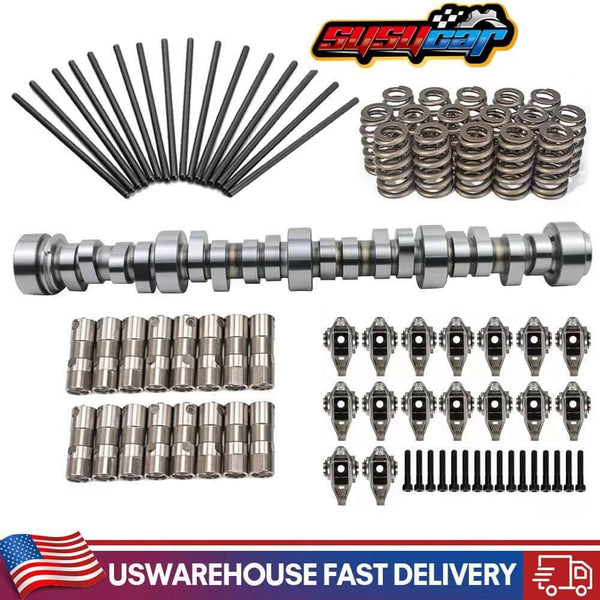

All components shown in the product images are included

• 2004Buick Rainier 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2002-2004Cadillac Escalade 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2002-2004Chevrolet Avalanche 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2007Chevrolet Express 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2007Chevrolet Express 2500 4.8L 294Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2005Chevrolet Express 2500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2006Chevrolet Silverado 1500 4.8L 294Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2006Chevrolet Silverado 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2007Chevrolet Silverado 1500 Classic 5.3L 5328CC 325Cu. In. V8 FLEX OHV Naturally Aspirated
• 2000Chevrolet Silverado 2500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 1999-2000Chevrolet Silverado 2500 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2004Chevrolet SSR 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2000Chevrolet Suburban 2500 6.0L 5967CC 364Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2004Chevrolet Tahoe 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2004Chevrolet Trailblazer EXT 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2004GMC Envoy XL 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2004GMC Envoy XUV 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2007GMC Savana 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2003-2007GMC Savana 2500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2006GMC Sierra 1500 4.8L 294Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2006GMC Sierra 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2007GMC Sierra 1500 Classic 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2000GMC Sierra 2500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2004GMC Yukon 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated
• 2000-2004GMC Yukon XL 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated

OEM Numbers

These OEM reference numbers are used for identification and fitment purposes.

Not sure if this fits❓
Send us your Year, Make, Model and Engine size before ordering.

⚠️IMPORTANT
Please double-check your vehicle’s year, engine type, and part number before purchasing.
If you're unsure, feel free to contact us for assistance.

• Part Type Stage 2 Hydraulic Roller Camshaft, Valve Spring, Lifter & Pushrod Kit
• Fitment Type Performance Upgrade
• Condition New
• Warranty 1 Year
• Position Engine Valve Train
• Placement Internal Engine
• Material Steel / 4130 Chromoly Steel, varies by component
• Engine Type GM Chevy LS1 Series
• Compatibility Compatible 3-Bolt Non-AFM / Non-DOD LS-Series Engines
• Camshaft Reference E-1840-P
• Camshaft Type Hydraulic Roller
• Cam Gear Attachment 3-Bolt
• RPM Range 2200–5400 RPM
• Intake Duration @ .050" 228°
• Exhaust Duration @ .050" 230°
• Intake Valve Lift .585"
• Exhaust Valve Lift .585"
• Lobe Separation Angle 112°
• Intake Centerline 108°
• Advertised Intake Duration 283°
• Advertised Exhaust Duration 286°
• Valve Spring Type Single Beehive
• Valve Springs per Valve Single
• Outside Diameter of Outer Spring 1.290 in.
• Inside Diameter of Outer Spring 0.885 in.
• Installed Height 1.800"
• Installed Load 130 lbs
• Open Height 1.175"
• Open Load 318 lbs
• Spring Rate 313 lbs/in.
• Coil Bind Height 1.140 in.
• Lifter Type Hydraulic Roller Lifters
• Lifter Quantity 16, confirm final package
• Pushrod Diameter 5/16"
• Pushrod Length 7.400"
• Pushrod Wall Thickness .080"
• Pushrod Material 4130 Chromoly Steel
• Application Type Stage 2 Camshaft and Valve-Train Upgrade
• AFM/DOD Compatibility Not for AFM/DOD-equipped engines
• VVT Compatibility Confirm application-specific requirements before installation
