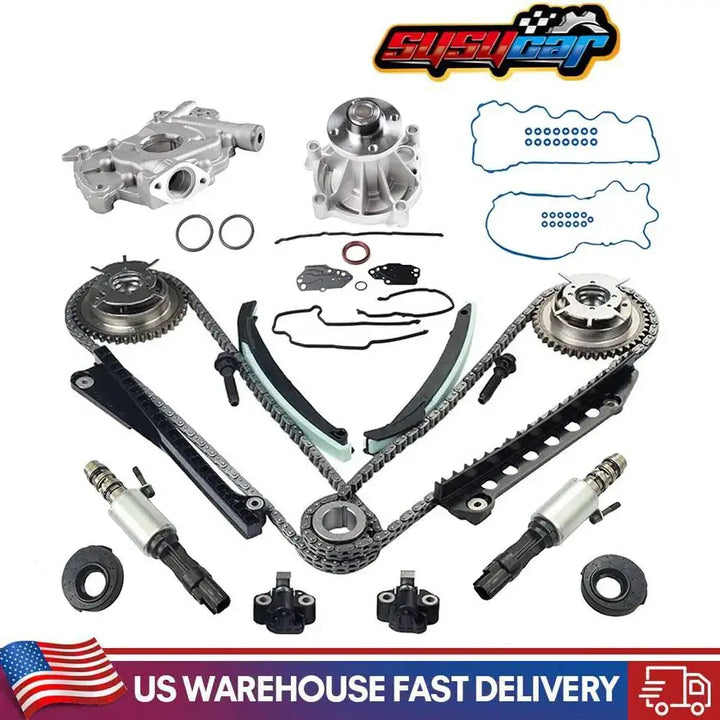

5.4L 3V Timing Chain Kit with Phasers, Oil & Water Pumps for 2004-2009 F-150
$249.90
In Stock
Pre-Order
Sold out
Fits your selection
Doesn't fit your selection
Make a selection to check fit
Estimated Delivery:
Calculating...
Need help?
Need help with fitment or your order? Contact our support team and include your vehicle year, make, model, engine, and product SKU.
Send us a message
Shipping & Returns
Shipping
All orders ship directly from our U.S. warehouses for faster delivery.learn more
- Orders processed within 1–2 business days
- Delivery typically takes 3–5 business days
- Free Shipping on orders over $99 within the contiguous U.S.
- Shipped via UPS, FedEx, USPS, or DHL
⚠️Note: Alaska, Hawaii, PO Boxes, and APO/FPO addresses are currently not supported.
Packaging
Every order is carefully packed with protective materials to help prevent damage during transit.learn more
Returns
Shop with confidence.learn more
- 90-Day Return Policy
- Unused items accepted in original condition
- Free return shipping for defective or incorrect items
- Fast refunds after inspection
Warranty
Selected products include up to a 3 Year Limited Warranty against manufacturing defects.Warranty coverage varies by product. Please refer to the product description for details.learn more
CODE: TCK-019
90-Day Returns
3 Year Warranty
- Overview
- Details
- Fitment
- Reviews
Overview
5.4L 3V Timing Chain Kit with Phasers, Oil & Water Pumps is a comprehensive front-engine service kit for Ford and Lincoln 5.4L SOHC 24-valve Triton applications retaining the factory VCT system. It combines the timing drive, cam-phasing components, lubrication pump, cooling pump and front-engine seals for repairs involving worn chains, damaged guides or tensioners, cam-phaser noise, VCT faults, oil-pump service or water-pump replacement.
The two timing chains synchronize the crankshaft with both camshafts, while the hydraulic tensioners and guides control chain movement. Oil-operated cam phasers and VCT solenoids regulate cam timing, the oil pump supplies the lubrication circuit, and the small-hub water pump circulates engine coolant.
Features
- Factory VCT 3-Valve Configuration: Designed for 5.4L SOHC 24-valve Triton engines retaining factory variable cam timing; not for 2-valve, 4-valve or fixed-phaser lockout configurations.
- Dual Cam-Phaser Service Scope: Includes left and right cam phaser sprockets, mounting bolts, camshaft spacers and VCT oil-control solenoids.
- Complete Dual-Chain Drive: Includes two 122-link timing chains, four guides, left and right hydraulic tensioners and a double-row crankshaft sprocket.
- 24mm-Inlet Oil Pump: Includes a front-mounted oil pump with a 24mm (15/16-inch) inlet.
- M30 Small-Hub Water Pump: Supplied with the small-hub water-pump configuration shown in the product photos.
- Front-Engine Sealing Components: Includes valve-cover gaskets, timing-cover gaskets and seals, oil-control-valve seals, a front crankshaft seal and high-temperature RTV.
Details
Package Contents
Specifications
Part Interchange
Fitment
| Year | Make | Model | Submodel | Engine |
|---|
No compatibility data is available for this product yet.
